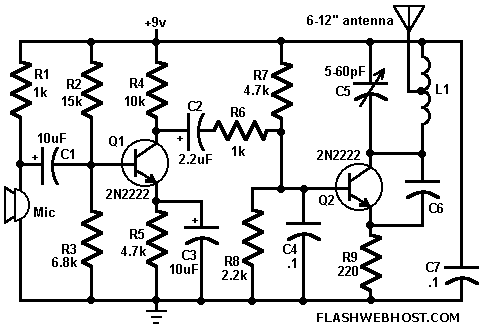

FM Wireless Mike can transmit voice signals to any FM Radio receiver 100 meters away. The circuit is basically a frequency modulated transmitter working at 100 MHz. The frequency of the transmitter can be varied slightly by changing the trimmer C5. You can use ordinary condenser mike in this circuit. The transistors can be replaced by any low power transistors like BC148 or BF494.
The coil L1 is air core 6 turn 24 SWG. Third turn is tapped and connected to telescopic antenna. You can replace telescopic antenna with a small piece of wire.
