7 MHz SSB Transceiver
7 MHz Transceiver Advice for beginers Winding Coils Test Equipments
Power Supply Variable Frequency Oscillator Carrier Oscillator Audio Amplifier
Mic Amplifier Receiver Front End MC1496 Ladder filter
IF Amplifier Linear Amplifier Power Amplifier Block Diagram
Circuit - Part 1 Circuit - Part 2 Antenna Conclusion

7MHz SSB Transceiver
Circuit Part 2

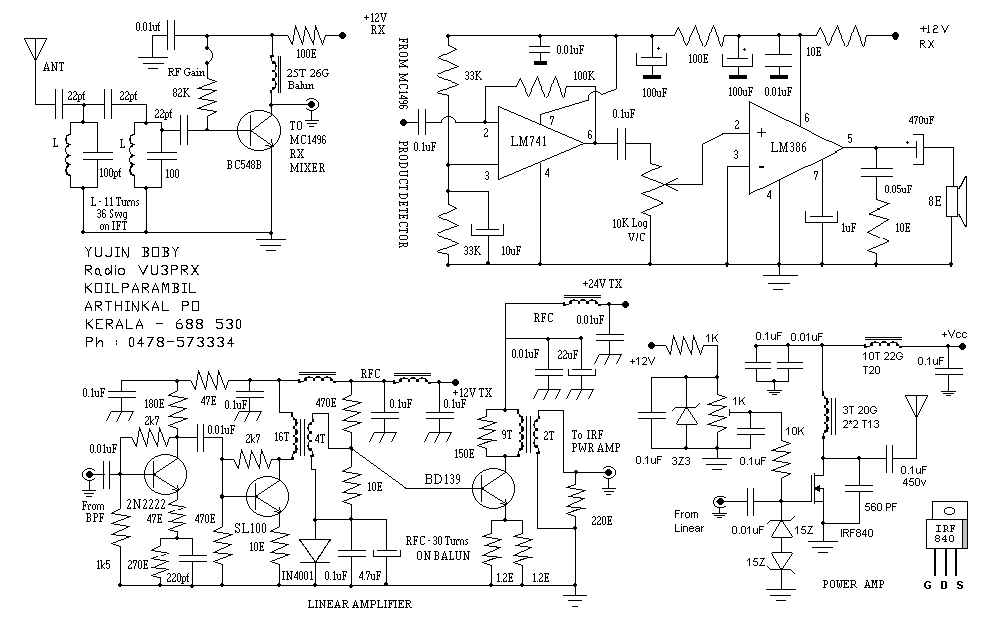

Circuit Diagram of 7MHz SSB Ham Radio Transceiver - Part 2
